TENSIONED

Tensioned motorised screens

Tensioned motorised screens with a neutral and linear design to suit perfectly to any environment, both domestic and working. Aluminum painted matt white, iron lateral caps covered with special carters. The tab tensioning system ensures the perfect planarity of the projection surface, even after many years. Tensioned screens can be produced with a wide choice of surfaces, with and without black borders. The electric wall switch in standard supplied, the radio remote control is available on request.

Data sheet (PDF)

Brochure

Available projection surfaces: White, Hi-gain White, Contrast Grey, Micro Sonora, Radiance and Rear Pro, ratios 4:3, 16:9 and 16:10, with and without black borders.
Lateral tab tensiong system.
Standard front unrolling of the projection surface.
Aluminum case available in matt white or matt black colour.
Electric single-phase motor Somfy, CE, IMQ, 5 years warranty, 230V-50Hz, 90W, 0,40A, protection IP44, 17 rpm,
Limit switches factory adjusted, possibility to change the settings if necessary. The screen can be stopped at intermediate positions with the electric switch.

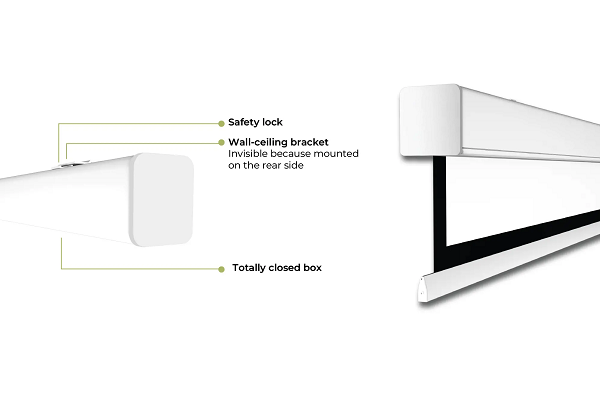

Wall and ceiling brackets with safety lock.
Iron lateral caps with closing carters.
Totally closed box by the ergonomic counterweight.
Wall electric switch included in the standard supply.
Radio remote control available on request, with external or built-in receiver.
Screen CE certified, 24 months warranty from the purchase date, at the conditions indicated in the instruction booklet .
Packed in strong double cardboard box.
Overall case encumbrance: screen width + cm. 27

						WITH BLACK BORDERS
WHITE	HI-GAIN WHITE	CONTRAST GREY	MICRO SONORA	RADIANCE	REAR PRO	RATIO	NET VIEW AREA cm	TOP BLACK DROP cm	CASE SIZE cm
B832116	H832116	G832116	M832116	A832116	R832116	4:3	213×160	20	240
B832418	H832418	G832418	M832418	A832418	R832418	4:3	244×183	20	271
B833022	H833022		M833022		R833022	4:3	305×229	20	332
B833627	H833627		M833627		R833627	4:3	366×274	20	393
B834030	H834030		M834030		R834030	4:3	406×305	20	433
B832112	H832112	G832112	M832112	A832112	R832112	16:9	213×120	50	240
B832413	H832413	G832413	M832413	A832413	R832413	16:9	244×137	50	271
B833017	H833017	G833017	M833017	A833017	R833017	16:9	305×172	50	332
B833620	H833620	G833620	M833620	A833620	R833620	16:9	366×206	50	393
B834022	H834022		M834022		R834022	16:9	406×228	50	433
B834123	H834123		M834123		R834123	16:9	413×232	50	440
B832113	H832113	G832113	M832113	A832113	R832113	16:10	213×133	35	240
B832415	H832415	G832415	M832415	A832415	R832415	16:10	244×152	35	271
B833019	H833019	G833019	M833019	A833019	R833019	16:10	305×190	35	332
B833622	H833622		M833622		R833622	16:10	366×229	35	393
B834025	H834025		M834025		R834025	16:10	406×254	35	433
B834125	H834125		M834125		R834125	16:10	413×258	35	440

Luxi s.r.l. reserves the right to change technical features and specifications without prior notice.

Data sheet (PDF)

Radio remote control with external receiver and transmitter
Radio remote control with built-in receiver and transmitter
Complete kit RF + Trigger 12V
Radio remote control with 4 channels transmitter + receivers
Wall switch (over the one included in the standard supply)

Features

Available projection surfaces: White, Hi-gain White, Contrast Grey, Micro Sonora, Radiance and Rear Pro, ratios 4:3, 16:9 and 16:10, with and without black borders.
Lateral tab tensiong system.
Standard front unrolling of the projection surface.
Aluminum case available in matt white or matt black colour.
Electric single-phase motor Somfy, CE, IMQ, 5 years warranty, 230V-50Hz, 90W, 0,40A, protection IP44, 17 rpm,
Limit switches factory adjusted, possibility to change the settings if necessary. The screen can be stopped at intermediate positions with the electric switch.
Wall and ceiling brackets with safety lock.
Iron lateral caps with closing carters.
Totally closed box by the ergonomic counterweight.
Wall electric switch included in the standard supply.
Radio remote control available on request, with external or built-in receiver.
Screen CE certified, 24 months warranty from the purchase date, at the conditions indicated in the instruction booklet .
Packed in strong double cardboard box.
Overall case encumbrance: screen width + cm. 27
