PROJECTION SURFACES WITH BORDERS AND EYELETS

Projection surfaces with borders and eyelets

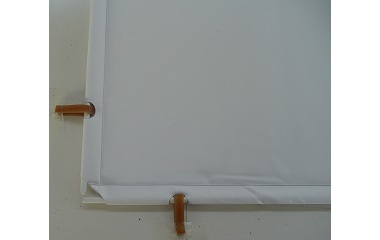

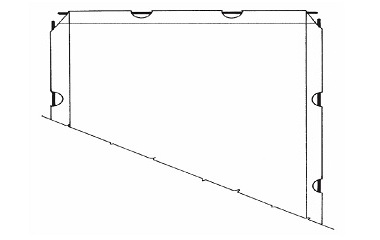

Projection surfaces made with borders and eyelets. Supplied with rigid pvc bars to be inserted into the borders and tension elastics. These surfaces can be mounted on our Rigid screens or on other existing structures. Screens made in ratio 1:1, 4:3, 16:9, 16:10 and custom, with White, Hi-Gain White, Contrast Grey, Sonora, Micro Sonora, Rear Pro, Dual Face and Chroma Key fabrics.


WHITE	HI-GAIN WHITE	CONTRAST GREY	SONORA	MICRO SONORA	REAR PRO	DUAL FACE	CHROMA KEY	RATIO	NET VIEW AREA (cm)	TOTAL SCREEN (cm)
B181612	H181612	G181612	T181612	M181612	R181612	D181612	C181612	4:3	160×120	164×124
B182015	H182015	G182015	T182015	M182015	R182015	D182015	C182015	4:3	200×150	204×154
B182519	H182519	G182519	T182519	M182519	R182519	D182519	C182519	4:3	250×190	254×194
B183022	H183022	G183022	T183022	M183022	R183022	D183022	C183022	4:3	300×225	304×229
B183526	H183526	G183526	T183526	M183526	R183526	D183526	C183526	4:3	350×265	354×269
B184030	H184030	G184030	T184030	M184030	R184030	D184030	C184030	4:3	400×300	404×304
B184533	H184533	G184533	T184533	N.A.	R184533	D184533	C184533	4:3	450×338	454×342
B185037	H185037	G185037	T185037	N.A.	R185037	D185037	C185037	4:3	500×375	504×379
B185541	H185541	G185541	T185541	N.A.	R185541	D185541	C185541	4:3	550×413	554×417
B186045	H186045	G186045	T186045	N.A.	R186045	D186045	C186045	4:3	600×450	604×454
B186548	H186548	G186548	T186548	N.A.	R186548	D186548	C186548	4:3	650×488	654×492
B187052	H187052	G187052	T187052	N.A.	R187052	D187052	C187052	4:3	700×525	704×529
B188060	H188060	G188060	T188060	N.A.	R188060	D188060	C188060	4:3	800×600	804×604
B181609	H181609	G181609	T181609	M181609	R181609	D181609	C181609	16:9	160×90	164×94
B182011	H182011	G182011	T182011	M182011	R182011	D182011	C182011	16:9	200×113	204×117
B182514	H182514	G182514	T182514	M182514	R182514	D182514	C182514	16:9	250×140	254×144
B183016	H183016	G183016	T183016	M183016	R183016	D183016	C183016	16:9	300×169	304×173
B183519	H183519	G183519	T183519	M183519	R183519	D183519	C183519	16:9	350×197	354×201
B184022	H184022	G184022	T184022	M184022	R184022	D184022	C184022	16:9	400×225	404×229
B184525	H184525	G184525	T184525	N.A.	R184525	D184525	C184525	16:9	450×253	454×257
B185028	H185028	G185028	T185028	N.A.	R185028	D185028	C185028	16:9	500×281	504×285
B185531	H185531	G185531	T185531	N.A.	R185531	D185531	C185531	16:9	550×310	554×314
B186033	H186033	G186033	T186033	N.A.	R186033	D186033	C186033	16:9	600×338	604×342
B186536	H186536	G186536	T186536	N.A.	R186536	D186536	C186536	16:9	650×366	654×370
B187039	H187039	G187039	T187039	N.A.	R187039	D187039	C187039	16:9	700×394	704×398
B187542	H187542	G187542	T187542	N.A.	R187542	D187542	C187542	16:9	750×422	754×426
B188045	H188045	G188045	T188045	N.A.	R188045	D188045	C188045	16:9	800×450	804×454
B189050	H189050	G189050	T189050	N.A.	R189050	N.A.	C189050	16:9	900×506	904×510
B181005	H181005	G181005	T181005	N.A.	R181005	N.A.	C181005	16:9	1000×563	1004×567
B181610	H181610	G181610	T181610	M181610	R181610	D181610	C181610	16:10	160×100	164×104
B182012	H182012	G182012	T182012	M182012	R182012	D182012	C182012	16:10	200×125	204×129
B182515	H182515	G182515	T182515	M182515	R182515	D182515	C182515	16:10	250×156	254×160
B183018	H183018	G183018	T183018	M183018	R183018	D183018	C183018	16:10	300×188	304×192
B183521	H183521	G183521	T183521	M183521	R183521	D183521	C183521	16:10	350×219	354×223
B184025	H184025	G184025	T184025	M184025	R184025	D184025	C184025	16:10	400×250	404×254
B184528	H184528	G184528	T184528	N.A.	R184528	D184528	C184528	16:10	450×281	454×285
B185031	H185031	G185031	T185031	N.A.	R185031	D185031	C185031	16:10	500×313	504×317
B185534	H185534	G185534	T185534	N.A.	R185534	D185534	C185534	16:10	550×344	554×348
B186037	H186037	G186037	T186037	N.A.	R186037	D186037	C186037	16:10	600×375	604×379
B186540	H186540	G186540	T186540	N.A.	R186540	D186540	C186540	16:10	650×406	654×410
B187043	H187043	G187043	T187043	N.A.	R187043	D187043	C187043	16:10	700×438	704×442
B187546	H187546	G184546	T187546	N.A.	R187546	D187546	C187546	16:10	750×469	754×473
B188050	H188050	G188050	T188050	N.A.	R188050	D188050	C188050	16:10	800×500	804×504
B182020	H182020	G182020	T182020	N.A.	R182020	D182020	C182020	1:1	200×200	204×204
B183030	H183030	G183030	T183030	N.A.	R183030	D183030	C183030	1:1	300×300	304×304
B184040	H184040	G184040	T184040	N.A.	R184040	D184040	C184040	1:1	400×400	404×404

Luxi s.r.l. reserves the right to change technical features and specifications without prior notice.

Data sheet (PDF)

Technical data


WHITE	HI-GAIN WHITE	CONTRAST GREY	SONORA	MICRO SONORA	REAR PRO	DUAL FACE	CHROMA KEY	RATIO	NET VIEW AREA (cm)	TOTAL SCREEN (cm)
B181612	H181612	G181612	T181612	M181612	R181612	D181612	C181612	4:3	160×120	164×124
B182015	H182015	G182015	T182015	M182015	R182015	D182015	C182015	4:3	200×150	204×154
B182519	H182519	G182519	T182519	M182519	R182519	D182519	C182519	4:3	250×190	254×194
B183022	H183022	G183022	T183022	M183022	R183022	D183022	C183022	4:3	300×225	304×229
B183526	H183526	G183526	T183526	M183526	R183526	D183526	C183526	4:3	350×265	354×269
B184030	H184030	G184030	T184030	M184030	R184030	D184030	C184030	4:3	400×300	404×304
B184533	H184533	G184533	T184533	N.A.	R184533	D184533	C184533	4:3	450×338	454×342
B185037	H185037	G185037	T185037	N.A.	R185037	D185037	C185037	4:3	500×375	504×379
B185541	H185541	G185541	T185541	N.A.	R185541	D185541	C185541	4:3	550×413	554×417
B186045	H186045	G186045	T186045	N.A.	R186045	D186045	C186045	4:3	600×450	604×454
B186548	H186548	G186548	T186548	N.A.	R186548	D186548	C186548	4:3	650×488	654×492
B187052	H187052	G187052	T187052	N.A.	R187052	D187052	C187052	4:3	700×525	704×529
B188060	H188060	G188060	T188060	N.A.	R188060	D188060	C188060	4:3	800×600	804×604
B181609	H181609	G181609	T181609	M181609	R181609	D181609	C181609	16:9	160×90	164×94
B182011	H182011	G182011	T182011	M182011	R182011	D182011	C182011	16:9	200×113	204×117
B182514	H182514	G182514	T182514	M182514	R182514	D182514	C182514	16:9	250×140	254×144
B183016	H183016	G183016	T183016	M183016	R183016	D183016	C183016	16:9	300×169	304×173
B183519	H183519	G183519	T183519	M183519	R183519	D183519	C183519	16:9	350×197	354×201
B184022	H184022	G184022	T184022	M184022	R184022	D184022	C184022	16:9	400×225	404×229
B184525	H184525	G184525	T184525	N.A.	R184525	D184525	C184525	16:9	450×253	454×257
B185028	H185028	G185028	T185028	N.A.	R185028	D185028	C185028	16:9	500×281	504×285
B185531	H185531	G185531	T185531	N.A.	R185531	D185531	C185531	16:9	550×310	554×314
B186033	H186033	G186033	T186033	N.A.	R186033	D186033	C186033	16:9	600×338	604×342
B186536	H186536	G186536	T186536	N.A.	R186536	D186536	C186536	16:9	650×366	654×370
B187039	H187039	G187039	T187039	N.A.	R187039	D187039	C187039	16:9	700×394	704×398
B187542	H187542	G187542	T187542	N.A.	R187542	D187542	C187542	16:9	750×422	754×426
B188045	H188045	G188045	T188045	N.A.	R188045	D188045	C188045	16:9	800×450	804×454
B189050	H189050	G189050	T189050	N.A.	R189050	N.A.	C189050	16:9	900×506	904×510
B181005	H181005	G181005	T181005	N.A.	R181005	N.A.	C181005	16:9	1000×563	1004×567
B181610	H181610	G181610	T181610	M181610	R181610	D181610	C181610	16:10	160×100	164×104
B182012	H182012	G182012	T182012	M182012	R182012	D182012	C182012	16:10	200×125	204×129
B182515	H182515	G182515	T182515	M182515	R182515	D182515	C182515	16:10	250×156	254×160
B183018	H183018	G183018	T183018	M183018	R183018	D183018	C183018	16:10	300×188	304×192
B183521	H183521	G183521	T183521	M183521	R183521	D183521	C183521	16:10	350×219	354×223
B184025	H184025	G184025	T184025	M184025	R184025	D184025	C184025	16:10	400×250	404×254
B184528	H184528	G184528	T184528	N.A.	R184528	D184528	C184528	16:10	450×281	454×285
B185031	H185031	G185031	T185031	N.A.	R185031	D185031	C185031	16:10	500×313	504×317
B185534	H185534	G185534	T185534	N.A.	R185534	D185534	C185534	16:10	550×344	554×348
B186037	H186037	G186037	T186037	N.A.	R186037	D186037	C186037	16:10	600×375	604×379
B186540	H186540	G186540	T186540	N.A.	R186540	D186540	C186540	16:10	650×406	654×410
B187043	H187043	G187043	T187043	N.A.	R187043	D187043	C187043	16:10	700×438	704×442
B187546	H187546	G184546	T187546	N.A.	R187546	D187546	C187546	16:10	750×469	754×473
B188050	H188050	G188050	T188050	N.A.	R188050	D188050	C188050	16:10	800×500	804×504
B182020	H182020	G182020	T182020	N.A.	R182020	D182020	C182020	1:1	200×200	204×204
B183030	H183030	G183030	T183030	N.A.	R183030	D183030	C183030	1:1	300×300	304×304
B184040	H184040	G184040	T184040	N.A.	R184040	D184040	C184040	1:1	400×400	404×404

Luxi s.r.l. reserves the right to change technical features and specifications without prior notice.

Data sheet (PDF)
