INCEELING TENSIONED

Home › › INCEELING TENSIONED

Invisible motorized projection screens

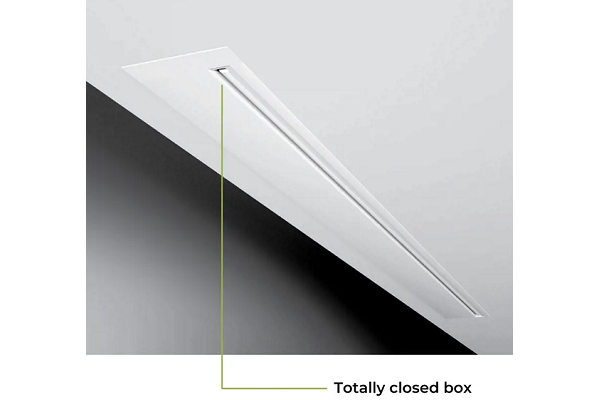

The screen is there… but you only see it when you need it! In all environments where aesthetics are a primary requirement – whteher at home or in your office – Inceeling Tensioned represents the ideal solution. Thanks to its innovative design, the motorized roll-up screen is housed in a false ceiling and is therefore visible only when it is actually in use. Once the projection is finished, the screen rewinds silently into its housing, becoming completely invisible. Moreover, its ease of installation and use makes Inceeling Tensioned a product that is as refined as it is pleasant to use. Installation is simple and precise thanks to the included cutting template, which allows the false ceiling to be cut accurately and quickly. A system disigned to facilitate the work of installers and designers, reducing time and margins of error.

Data sheet (PDF)
Brochure
  • Screen totally hidden in the false ceiling.
  • Lateral tab tensioning system for a perfect planarity of the projection surface, even after many years of use.
  • Available projection surfaces: White, Hi-gain White, Contrast Grey, Micro Sonora, Radiance and Rear Pro, ratios 4:3, 16:9 and 16:10, with and without black borders.
  • Front unrolling of the projection surface.
  • Aluminum case available in matt white or matt black colour.
  • Electric single-phase motor Somfy, CE, IMQ, 5 years warranty, 230V-50Hz.
  • Limit switches factory adjusted, possibility to change the settings if necessary. The screen can be stopped at intermediate positions with the electric switch.
  • Ceiling fixing kit with adjustable threaded rods. The practical bracket attachment system with threaded rods ensures fastening and makes positioning easy, even in complex spaces or areas with limited access.
  • Easy mounting system with the exclusive adhesive stencil shape that gives the exact portion of the false ceiling to cut.
  • Wall electric switch included in the standard supply.
  • Radio remote control available on request, with external or built-in receiver.
  • Screen CE certificated, 24 months warranty from the purchase date, at the conditions indicated in the instruction booklet.
  • Packed in strong double cardboard box.
WITH BLACK BORDERS
CODECODECODECODECODECODE
WHITE HI-GAIN WHITE MICRO SONORACONTRAST GREY RADIANCEREAR PRO RATIONET VIEW AREA (cm)TOP BLACK DROP (cm)CASE SIZE (cm)STENCIL SHAPE (cm)
B802015 H802015 M802015G802015 A802015R802015 4:3203×152 20235237×15
B802418 H802418 M802418G802418 A802418R802418 4:3244×183 20276278×15
B803022 H803022 M803022R803022 4:3305×229 20337339×15
B803627 H803627 M803627R803627 4:3366×274 20398400×15
B804030 H804030 M804030R804030 4:3406×305 20438440×15
B802011 H802011 M802011G802011 A802011R802011 16:9203×114 50235237×15
B802413 H802413 M802413G802413 A802413R802413 16:9244×137 50276278×15
B803017 H803017 M803017G803017 A803017R803017 16:9305×172 50337339×15
B803620 H803620 M803620G803620 A803620R803620 16:9366×206 50398400×15
B804022 H804022 M804022R804022 16:9406×228 50438440×15
B804123H804123M804123R80412316:9413×23250445447×15
B802012 H802012 M802012G802012 A802012R802012 16:10203×127 35235237×15
B802415 H802415 M802415G802415 A802415R802415 16:10244×153 35276278×15
B803019 H803019 M803019G803019 A803019R803019 16:10305×191 35337339×15
B803622 H803622 M803622R803622 16:10366×229 35398400×15
B804025 H804025 M804025R804025 16:10406×254 35438440×15
B804125H804125M804125R80412516:10413×25835445447×15

Luxi s.r.l. reserves the right to change technical features and specifications without prior notice.

Data sheet (PDF)
  • Radio remote control with external receiver and transmitter
  • Radio remote control with built-in receiver and transmitter
  • Complete kit RF + Trigger 12V
  • Radio remote control with 4 channels transmitter + receivers
  • Wall switch (over the one included in the standard supply)
Features
  • Screen totally hidden in the false ceiling.
  • Lateral tab tensioning system for a perfect planarity of the projection surface, even after many years of use.
  • Available projection surfaces: White, Hi-gain White, Contrast Grey, Micro Sonora, Radiance and Rear Pro, ratios 4:3, 16:9 and 16:10, with and without black borders.
  • Front unrolling of the projection surface.
  • Aluminum case available in matt white or matt black colour.
  • Electric single-phase motor Somfy, CE, IMQ, 5 years warranty, 230V-50Hz.
  • Limit switches factory adjusted, possibility to change the settings if necessary. The screen can be stopped at intermediate positions with the electric switch.
  • Ceiling fixing kit with adjustable threaded rods. The practical bracket attachment system with threaded rods ensures fastening and makes positioning easy, even in complex spaces or areas with limited access.
  • Easy mounting system with the exclusive adhesive stencil shape that gives the exact portion of the false ceiling to cut.
  • Wall electric switch included in the standard supply.
  • Radio remote control available on request, with external or built-in receiver.
  • Screen CE certificated, 24 months warranty from the purchase date, at the conditions indicated in the instruction booklet.
  • Packed in strong double cardboard box.
Technical data
WITH BLACK BORDERS
CODECODECODECODECODECODE
WHITE HI-GAIN WHITE MICRO SONORACONTRAST GREY RADIANCEREAR PRO RATIONET VIEW AREA (cm)TOP BLACK DROP (cm)CASE SIZE (cm)STENCIL SHAPE (cm)
B802015 H802015 M802015G802015 A802015R802015 4:3203×152 20235237×15
B802418 H802418 M802418G802418 A802418R802418 4:3244×183 20276278×15
B803022 H803022 M803022R803022 4:3305×229 20337339×15
B803627 H803627 M803627R803627 4:3366×274 20398400×15
B804030 H804030 M804030R804030 4:3406×305 20438440×15
B802011 H802011 M802011G802011 A802011R802011 16:9203×114 50235237×15
B802413 H802413 M802413G802413 A802413R802413 16:9244×137 50276278×15
B803017 H803017 M803017G803017 A803017R803017 16:9305×172 50337339×15
B803620 H803620 M803620G803620 A803620R803620 16:9366×206 50398400×15
B804022 H804022 M804022R804022 16:9406×228 50438440×15
B804123H804123M804123R80412316:9413×23250445447×15
B802012 H802012 M802012G802012 A802012R802012 16:10203×127 35235237×15
B802415 H802415 M802415G802415 A802415R802415 16:10244×153 35276278×15
B803019 H803019 M803019G803019 A803019R803019 16:10305×191 35337339×15
B803622 H803622 M803622R803622 16:10366×229 35398400×15
B804025 H804025 M804025R804025 16:10406×254 35438440×15
B804125H804125M804125R80412516:10413×25835445447×15

Luxi s.r.l. reserves the right to change technical features and specifications without prior notice.

Data sheet (PDF)
Accessories
  • Radio remote control with external receiver and transmitter
  • Radio remote control with built-in receiver and transmitter
  • Complete kit RF + Trigger 12V
  • Radio remote control with 4 channels transmitter + receivers
  • Wall switch (over the one included in the standard supply)
