BIGSUPER 750-850

Motorised screens BigSuper 750-850

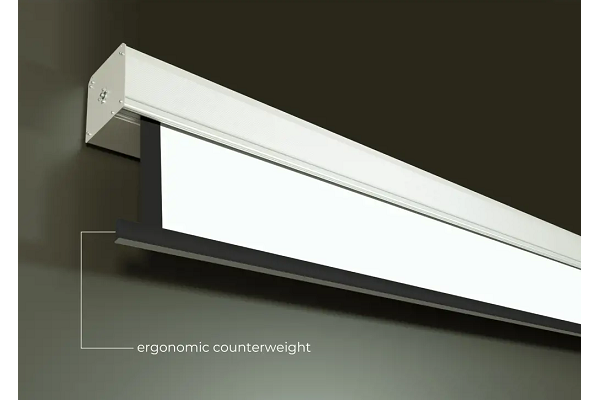

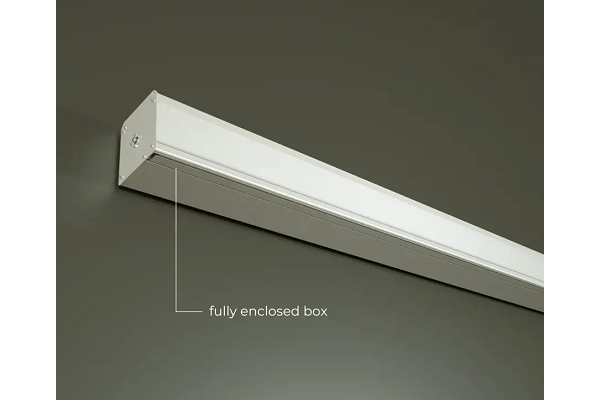

Professional motorised screens, designed with high quality materials and attention to detail. These screens are the ideal solution for permanently installed applications in large environments, equipped for a large audience where it is therefore necessary to have high quality projections, such as for example university and congress halls; cinemas and theatres, sporting, cultural and musical events. BigSuper can be supplied with and without case, with and without black borders, with and without lateral tensioning system. The case is available in white or black version; the counterweight perfectly closes with the case when the screen is closed. The special electric motor has a smart force measurement, with automatic block when the counterweight is stuck in. The version without case is equipped with big diameter aluminum rolling tube, steel lateral brackets for wall and ceiling mounting and anchoring chains. Both the models are supplied with up and down limit switches sets, wall electric inverter and instruction booklet. Accessories available on request are: radio remote control and aliscaf brackets for truss mounting or eyebolts brackets.

Data sheet (PDF)

Brochure

Available projection surfaces: White, Hi-gain White, Sonora and Rear Pro, ratios 4:3, 16:9 and, 16:10 with and without black borders.
Standard front unrolling of the projection surface for the version with case; standard back unrolling of the projection surface for the version without case (to protect it against dust and weather damages).

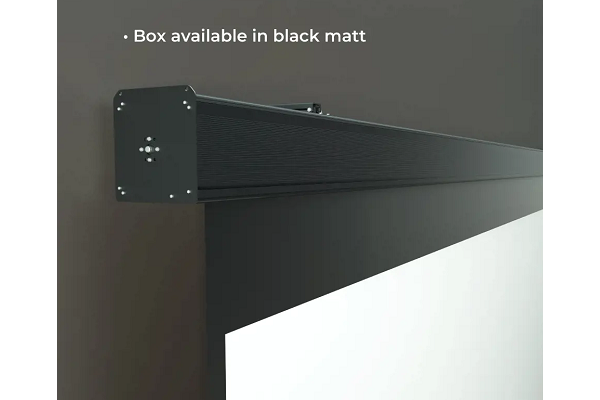

Aluminum case painted white or black; aluminum big diameter tube; iron brackets.
Electric single-phase motor, CE, 5 years warranty 230V-50Hz, 240W 1,1A, protection IP44, 12 rpm.
Limit switches factory adjusted, possibility to change the settings if necessary. The screen can be stopped at intermediate positions with the electric switch.

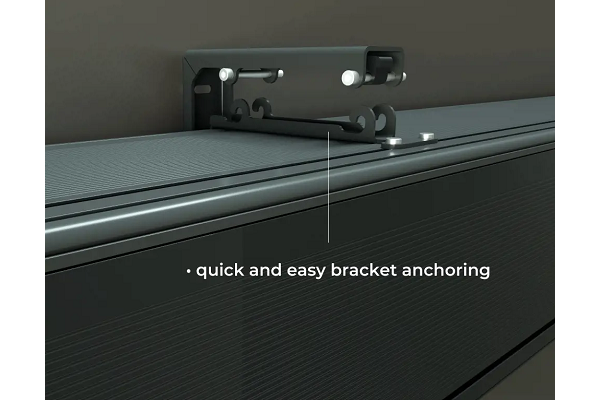

Steel wall and ceiling brackets standard supplied (2 pcs). Eyebolt brackets and aliscaf brackets available on request (screen with case)
Lateral steel wall and ceiling brackets and anchoring chains (screen without case)
Wall electric switch included in the standard supply.
Radio remote control available on request.
Screen CE certificated, 24 months warranty from the purchase date, at the conditions indicated in the instruction booklet.
Steel bar reinforced packing.

WITH CASE – WITHOUT BLACK BORDERS

CODE	CODE	CODE	CODE	RATIO	NET VIEW AREA (cm)	CASE LENGTH (cm)
WHITE	HI-GAIN WHITE	SONORA	REAR PRO
B617556	H617556	T617556	R617556	4:3	750×562	770
B618060	H618060	T618060	R618060	4:3	800×600	820
B617542	H617542	T617542	R617542	16:9	750×422	770
B618045	H618045	T618045	R618045	16:9	800×450	820
B618547	H618547	T618547	R618547	16:9	850×478	870
B617546	H617546	T617546	R617546	16:10	750×469	770
B618050	H618050	T618050	R618050	16:10	800×500	820
B618553	H618553	T618553	R618553	16:10	850×531	870

WITH CASE – WITH BLACK BORDERS

CODE	CODE	CODE	CODE	RATIO	NET VIEW AREA (cm)	TOP BLACK DROP	CASE LENGTH (cm)
WHITE	HI-GAIN WHITE	SONORA	REAR PRO
B617455	H617455	T617455	R617455	4:3	740×555	20	770
B617959	H617959	T617959	R617959	4:3	790×592	20	820
B617441	H617441	T617441	R617441	16:9	740×416	50	770
B617944	H617944	T617944	R617944	16:9	790×444	50	820
B618447	H618447	T618447	R618447	16:9	840×472	50	870
B617446	H617446	T617446	R617446	16:10	740×462	35	770
B617949	H617949	T617949	R617949	16:10	790×493	35	820
B618452	H618452	T618452	R618452	16:10	840×525	35	870

WITH CASE – WITH AND WITHOUT BLACK BORDERS – TENSIONED

CODE	CODE	CODE	CODE	RATIO	NET VIEW AREA (cm)	BLACK BORDERS CM.	TOP BLACK DROP	CASE LENGTH (cm)
WHITE	HI-GAIN WHITE	SONORA	REAR PRO
B617254T	H617254T	T617254T	R617254T	4:3	720×540	8	20	770
B617757T	H617757T	T617757T	R617757T	4:3	770×577	8	20	820
B617240T	H617240T	T617240T	R617240T	16:9	720×405	8	50	770
B617743T	H617743T	T617743T	R617743T	16:9	770×433	8	50	820
B618246T	H618246T	T618246T	R618246T	16:9	820×461	8	50	870
B617445T	H617445T	T617445T	R617445T	16:10	720×450	8	35	770
B617748T	H617748T	T617748T	R617748T	16:10	770×481	8	35	820
B618251T	H618251T	T618251T	R618251T	16:10	820×512	8	35	870
B617556TNB	H617556TNB	T617556TNB	R617556TNB	4:3	750×562	no	no	780
B618060TNB	H618060TNB	T618060TNB	R618060TNB	4:3	800×600	no	no	830
B617542TNB	H617542TNB	T617542TNB	R617542TNB	16:9	750×422	no	no	780
B618045TNB	H618045TNB	T618045TNB	R618045TNB	16:9	800×450	no	no	830
B816447TNB	H816447TNB	T816447TNB	R816447TNB	16:9	840×472	no	no	880
B617546TNB	H617546TNB	T617546TNB	R617546TNB	16:10	750×469	no	no	780
B618050TNB	H618050TNB	T618050TNB	R618050TNB	16:10	800×500	no	no	830
B618452TNB	H618452TNB	T618452TNB	R618452TNB	16:10	840×525	no	no	880

WITHOUT CASE – WITHOUT BLACK BORDERS

CODE	CODE	CODE	CODE	RATIO	NET VIEW AREA (cm)	TOTAL LENGTH (cm)
WHITE	HI-GAIN WHITE	SONORA	REAR PRO
B667556	H667556	T667556	R667556	4:3	750×562	776
B668060	H668060	T668060	R668060	4:3	800×600	826
B667542	H667542	T667542	R667542	16:9	750×422	776
B668045	H668045	T668045	R668045	16:9	800×450	826
B668547	H668547	T668547	R668547	16:9	850×478	876
B667546	H667546	T667546	R667546	16:10	750×469	776
B668050	H668050	T668050	R668050	16:10	800×500	826
B668553	H668553	T668553	R668553	16:10	850×531	876

Luxi s.r.l. reserves the right to change technical features and specifications without prior notice.

Data sheet (PDF)

Radio remote control
4 channel radio remote control + receivers
Complete kit RF + trigger 12V
Wall switch (over the one included in the standard supply)
Eyebolt brackets (only for the screen with case)
Aliscaf brackets (only for the screen with case)

Features

Available projection surfaces: White, Hi-gain White, Sonora and Rear Pro, ratios 4:3, 16:9 and, 16:10 with and without black borders.
Standard front unrolling of the projection surface for the version with case; standard back unrolling of the projection surface for the version without case (to protect it against dust and weather damages).
Aluminum case painted white or black; aluminum big diameter tube; iron brackets.
Electric single-phase motor, CE, 5 years warranty 230V-50Hz, 240W 1,1A, protection IP44, 12 rpm.
Limit switches factory adjusted, possibility to change the settings if necessary. The screen can be stopped at intermediate positions with the electric switch.
Steel wall and ceiling brackets standard supplied (2 pcs). Eyebolt brackets and aliscaf brackets available on request (screen with case)
Lateral steel wall and ceiling brackets and anchoring chains (screen without case)
Wall electric switch included in the standard supply.
Radio remote control available on request.
Screen CE certificated, 24 months warranty from the purchase date, at the conditions indicated in the instruction booklet.
Steel bar reinforced packing.
